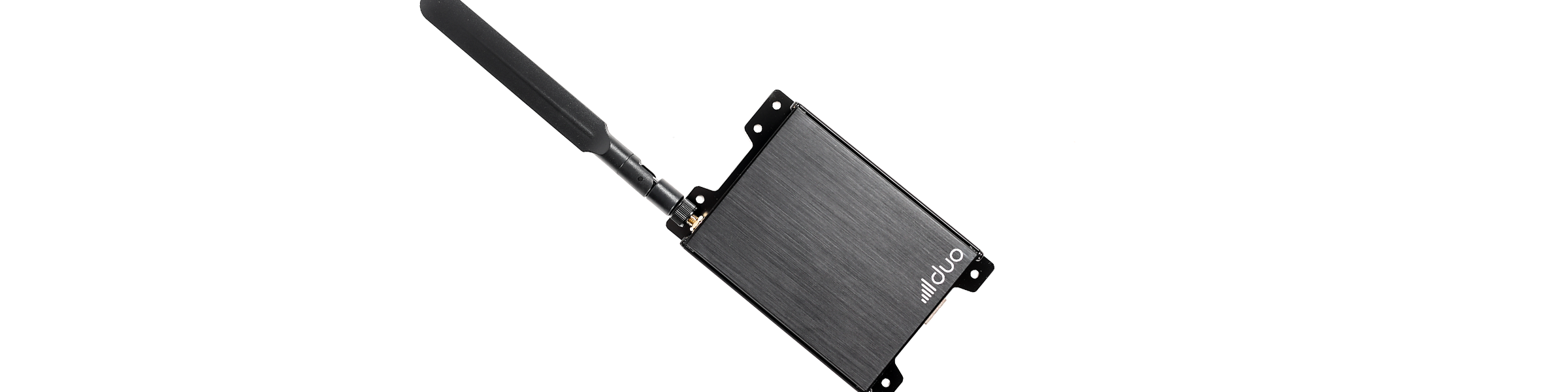

DUO™ IP/LTE Dual-Path Security Module For DSC & Honeywell Panels

Dual-Path Control

The DUO™ IP/LTE is a full DUAL-PATH solution in one form factor. It is a powerful TCP-IP and/or LTE based bus-level interface to DSC PowerSeries* panels and Honeywell Vista* panels. It allows you to view the status of and even control your alarm panel through a standard web-browser or smart-phone. The DUO™ also supports a special Stand-Alone mode that allows it to form the base of a customizable full security system on its own.

Connect2Go LTE Service

A SIM is included with the device and your dealer can provide details of the LTE plan.

Connect2Go Service

With the addition of the Connect2Go service your control is enhanced and can be extended to anywhere in the world. Connect2Go also allows you to specify e-mail or SMS addresses to receive alarms, arms, disarms and more.

With Connect2Go Service

Monitoring Capable Over IP

The DUO supports full UL/ULC grade alarm monitoring over IP. Contact your dealer for details.

Fully Upgradeable

As new software features become available the DUO™ is easily upgraded over the network and automatically keeps itself up to date.

Plays Well With Others

Through the built in TPI (third party interface) the DUO™ is already compatible with many major home automation systems and numerous 3rd party Android and iPhone apps.

Note: Included SIM will expire after one year if not activated.*

Get it on Google Play

Module Features

  • • 100BaseT Ethernet Support
  • • Diagnostic LEDs to speed installation
  • • Remotely upgradable to allow for new features and services
  • • Local programmer’s and integration interface
  • • Expansion Header – add new hardware modules as they become available
  • • Simple to hook-up
  • • Built-in basic web server and html user-interface
  • • 128-bit encryption
  • • Local Arm/Disarm/Zone Bypass/PGM Control
  • • Multi-Partition Support
  • • LTE CAT-M1 & NB-IoT
  • • GSM 4G
  • • SIA and ContactID
  • • No programming required
  • • Status LEDs
  • • Horizontal or vertical mount
  • • DUO module may be mounted up to 50m (150 feet) from the alarm panel if necessary
  • • LTE antenna may also be extended from the DUO module by 10m (30 feet) with optional coax cable

Specifications

  • • Power Draw: 90 mA nominal
  • • Connectors: RJ45, 4-Terminal Spring-load Bus,Expansion Connector
  • • Dimensions (Without Antenna): 142 mm (5-5/8") 90 mm (3-9/16")

Included In The Box

  • • DUO LTE Module (SIM card included. Please note if SIM is not activated within 1 year of purchase it will expire.)
  • • Antenna
  • • Hardware Kit
  • • Installation Guide

Panel Compatibility

  • • DSC PowerSeries (1555, 1555 MX, 1575, 5010 (832), 5020 (864), 1616, 1832, 1864) How do I know I have a DSC panel?
  • • Honeywell Vista Panels (Vista20P, 21iP, 15P, 10P, 128P, and 250P)
